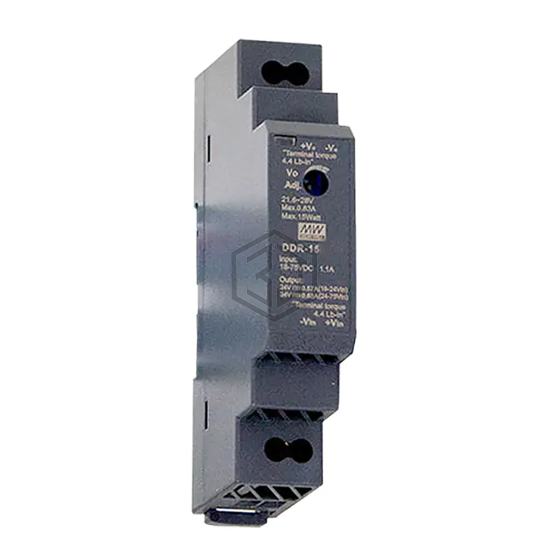

DC/DC CONVERTER 3.3V 12W
DDR-15G-3.3 is a Industrial, DIN Rail Power Supplies manufactured by MEAN WELL USA Inc.. DC/DC CONVERTER 3.3V 12W. Key specifications: operating temperature -40°C ~ 85°C (With Derating), current - output (max) 3.5A, size / dimension 2.15" L x 0.69" W x 3.54" H (54.5mm x 17.5mm x 90.0mm), number of outputs 1.
In Stock: 56
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 1 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 9V |
| DC Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 3.5A |
| Power (Watts) | 12W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial) |
| Efficiency | 84% |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Features | Adjustable Output |
| Size / Dimension | 2.15" L x 0.69" W x 3.54" H (54.5mm x 17.5mm x 90.0mm) |
| Approval Agency | CE, EAC |
| Standard Number | - |
Submit your RFQ for DDR-15G-3.3 and get a quote within 24 hours.
