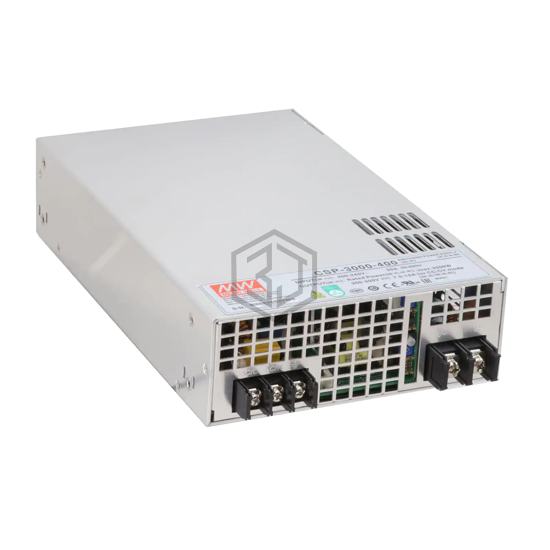

AC/DC CONVERTER 400V 3000W
CSP-3000-400 is a AC DC Converters manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER 400V 3000W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 65°C (With Derating), voltage - input 180 ~ 264 VAC, 254 ~ 370 VDC, size / dimension 10.94" L x 7.00" W x 2.50" H (278.0mm x 177.8mm x 63.5mm).
In Stock: 56
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 180 ~ 264 VAC, 254 ~ 370 VDC |
| Voltage - Output 1 | 400V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 7.5 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 3000W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 93% |
| Operating Temperature | -20°C ~ 65°C (With Derating) |
| Features | Adjustable Output, Load Sharing, PFC, Remote On/Off |
| Mounting Type | Chassis Mount |
| Size / Dimension | 10.94" L x 7.00" W x 2.50" H (278.0mm x 177.8mm x 63.5mm) |
| Approval Agency | CB, CE, CQC, cURus, EAC |
| Standard Number | - |
Submit your RFQ for CSP-3000-400 and get a quote within 24 hours.
