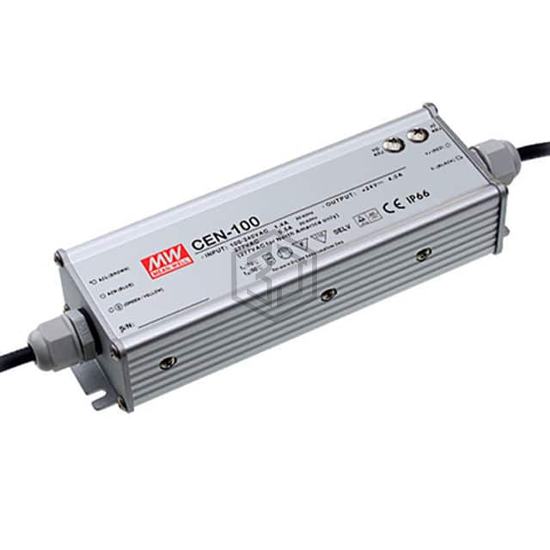

LED DRIVER CC AC/DC 31.2-48V 2A
CEN-100-48 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRIVER CC AC/DC 31.2-48V 2A. Key specifications: operating temperature -30°C ~ 70°C, voltage - output 31.2 ~ 48V, current - output (max) 2A, size / dimension 6.85" L x 2.46" W x 1.59" H (174.0mm x 62.5mm x 40.5mm).
In Stock: 52
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 295VAC |
| Voltage - Output | 31.2 ~ 48V |
| Current - Output (Max) | 2A |
| Power (Watts) | 96 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | - |
| Features | OCP, OTP, OVP, SCP |
| Ratings | IP66 |
| Operating Temperature | -30°C ~ 70°C |
| Efficiency | 91% |
| Termination Style | Wire Leads |
| Size / Dimension | 6.85" L x 2.46" W x 1.59" H (174.0mm x 62.5mm x 40.5mm) |
| Approval Agency | CB, CE, UR, PSE, TUV |
| Standard Number | - |
