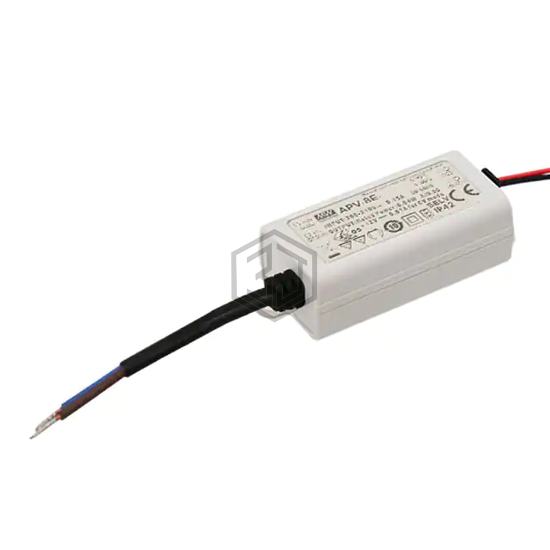

LED DRIVER CV AC/DC 24V 340MA
APV-8E-24 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRIVER CV AC/DC 24V 340MA. Key specifications: operating temperature -30°C ~ 70°C, voltage - output 24V, current - output (max) 340mA, size / dimension 2.36" L x 1.18" W x 0.93" H (60.0mm x 30.0mm x 23.5mm).
In Stock: 57
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Constant Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 180VAC |
| Voltage - Input (Max) | 264VAC |
| Voltage - Output | 24V |
| Current - Output (Max) | 340mA |
| Power (Watts) | 8 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | - |
| Features | OCP, OVP, SCP |
| Ratings | IP42 |
| Operating Temperature | -30°C ~ 70°C |
| Efficiency | 78.5% |
| Termination Style | Wire Leads |
| Size / Dimension | 2.36" L x 1.18" W x 0.93" H (60.0mm x 30.0mm x 23.5mm) |
| Approval Agency | CB, CE, ENEC |
| Standard Number | - |
Submit your RFQ for APV-8E-24 and get a quote within 24 hours.
