LED DRIVER CV AC/DC 15V 800MA

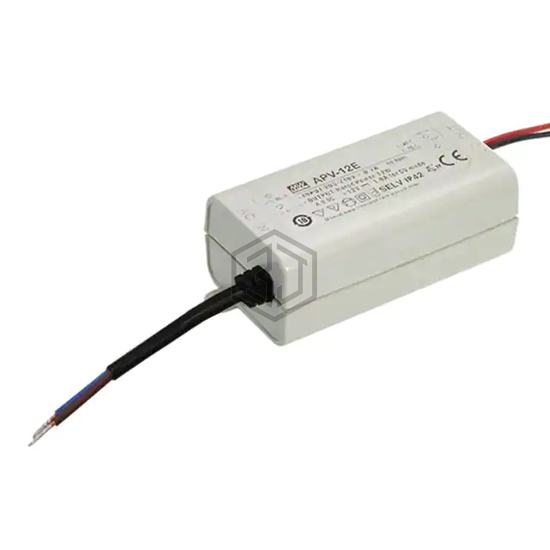

APV-12E-15 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRIVER CV AC/DC 15V 800MA. Key specifications: operating temperature -30°C ~ 70°C, voltage - output 15V, current - output (max) 800mA, size / dimension 3.03" L x 1.57" W x 1.14" H (77.0mm x 40.0mm x 29.0mm).
In Stock: 35
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Constant Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 180VAC |
| Voltage - Input (Max) | 264VAC |
| Voltage - Output | 15V |
| Current - Output (Max) | 800mA |
| Power (Watts) | 12 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | - |
| Features | OCP, OVP, SCP |
| Ratings | IP42 |
| Operating Temperature | -30°C ~ 70°C |
| Efficiency | 81% |
| Termination Style | Wire Leads |
| Size / Dimension | 3.03" L x 1.57" W x 1.14" H (77.0mm x 40.0mm x 29.0mm) |
| Approval Agency | CE, ENEC |
| Standard Number | - |
