LED DRVR CC AC/DC 11-23V 350MA

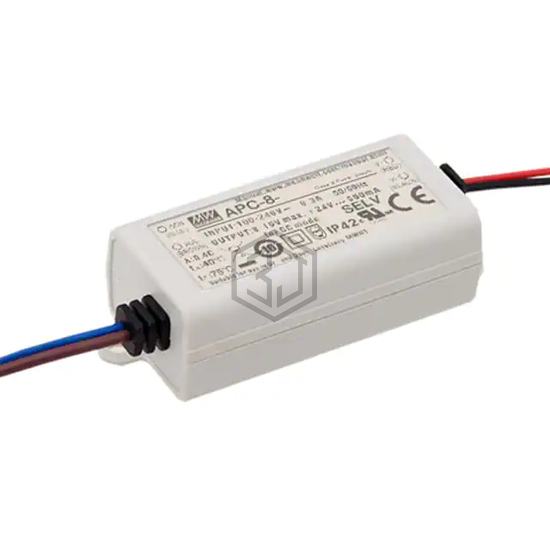

APC-8-350 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRVR CC AC/DC 11-23V 350MA. Key specifications: operating temperature -30°C ~ 70°C, voltage - output 11 ~ 23V, current - output (max) 350mA, size / dimension 2.36" L x 1.18" W x 0.93" H (60.0mm x 30.0mm x 23.5mm).
In Stock: 1,412
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 264VAC |
| Voltage - Output | 11 ~ 23V |
| Current - Output (Max) | 350mA |
| Power (Watts) | 8 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | - |
| Features | SCP |
| Ratings | IP42 |
| Operating Temperature | -30°C ~ 70°C |
| Efficiency | 81.5% |
| Termination Style | Wire Leads |
| Size / Dimension | 2.36" L x 1.18" W x 0.93" H (60.0mm x 30.0mm x 23.5mm) |
| Approval Agency | CCC, CE, cURus |
| Standard Number | - |
Submit your RFQ for APC-8-350 and get a quote within 24 hours.
