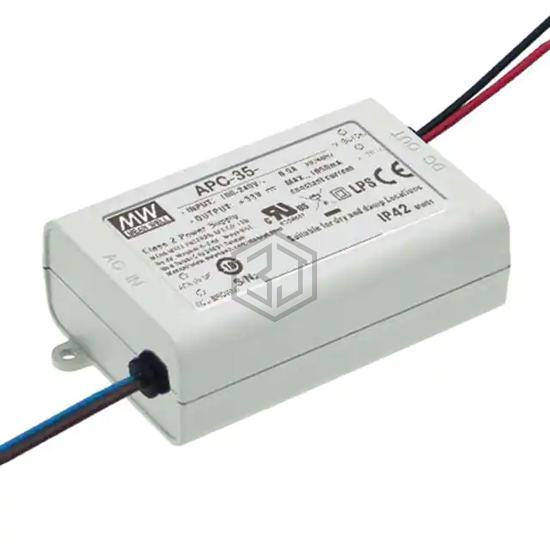

LED DRVR CC AC/DC 28-100V 350MA
APC-35-350 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRVR CC AC/DC 28-100V 350MA. Key specifications: operating temperature -30°C ~ 70°C, voltage - output 28 ~ 100V, current - output (max) 350mA, size / dimension 3.31" L x 2.24" W x 1.16" H (84.0mm x 57.0mm x 29.5mm).
In Stock: 42
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 264VAC |
| Voltage - Output | 28 ~ 100V |
| Current - Output (Max) | 350mA |
| Power (Watts) | 35 W |
| Voltage - Isolation | 3 kV |
| Dimming | - |
| Features | OVP, SCP |
| Ratings | IP42 |
| Operating Temperature | -30°C ~ 70°C |
| Efficiency | 84% |
| Termination Style | Wire Leads |
| Size / Dimension | 3.31" L x 2.24" W x 1.16" H (84.0mm x 57.0mm x 29.5mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for APC-35-350 and get a quote within 24 hours.
