LED DRVR CC AC/DC 11-33V 1.05A

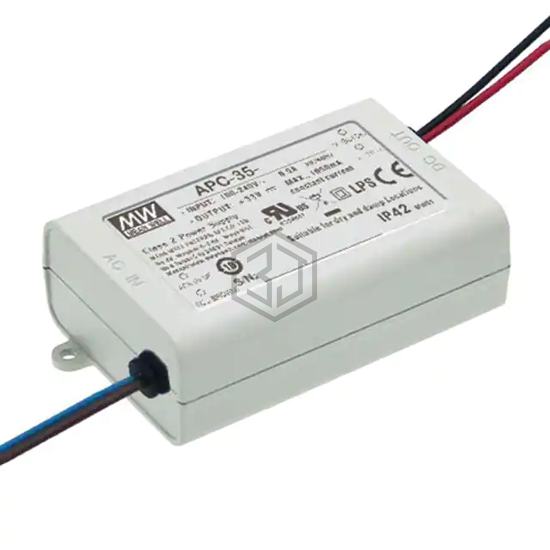

APC-35-1050 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRVR CC AC/DC 11-33V 1.05A. Key specifications: operating temperature -30°C ~ 70°C, voltage - output 11 ~ 33V, current - output (max) 1.05A, size / dimension 3.31" L x 2.24" W x 1.16" H (84.0mm x 57.0mm x 29.5mm).
In Stock: 1,813
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 264VAC |
| Voltage - Output | 11 ~ 33V |
| Current - Output (Max) | 1.05A |
| Power (Watts) | 35 W |
| Voltage - Isolation | 3 kV |
| Dimming | - |
| Features | OVP, SCP |
| Ratings | IP42 |
| Operating Temperature | -30°C ~ 70°C |
| Efficiency | 84% |
| Termination Style | Wire Leads |
| Size / Dimension | 3.31" L x 2.24" W x 1.16" H (84.0mm x 57.0mm x 29.5mm) |
| Approval Agency | CE, cURus |
| Standard Number | - |
