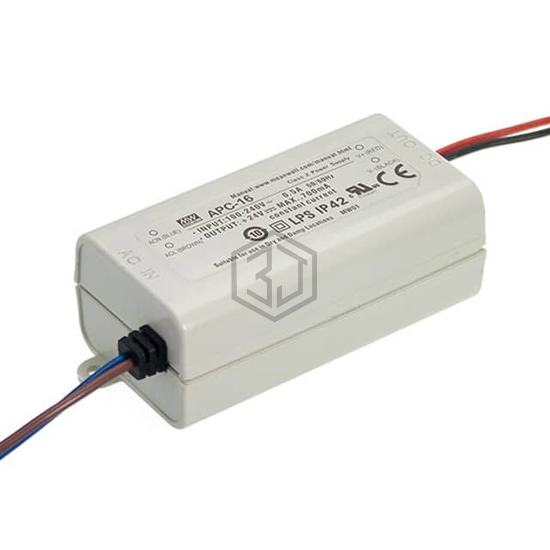

LED DRIVER CC AC/DC 9-24V 700MA
APC-16-700 is a LED Drivers manufactured by MEAN WELL USA Inc.. LED DRIVER CC AC/DC 9-24V 700MA. Key specifications: operating temperature -30°C ~ 70°C, voltage - output 9 ~ 24V, current - output (max) 700mA, size / dimension 3.03" L x 1.57" W x 1.14" H (77.0mm x 40.0mm x 29.0mm).
In Stock: 573
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 264VAC |
| Voltage - Output | 9 ~ 24V |
| Current - Output (Max) | 700mA |
| Power (Watts) | 17 W |
| Voltage - Isolation | 3.75 kV |
| Dimming | - |
| Features | OVP, SCP |
| Ratings | IP42 |
| Operating Temperature | -30°C ~ 70°C |
| Efficiency | 83% |
| Termination Style | Wire Leads |
| Size / Dimension | 3.03" L x 1.57" W x 1.14" H (77.0mm x 40.0mm x 29.0mm) |
| Approval Agency | CCC, CE, cURus |
| Standard Number | - |
Submit your RFQ for APC-16-700 and get a quote within 24 hours.
