AC/DC CONVERTER 48V 5V 154W

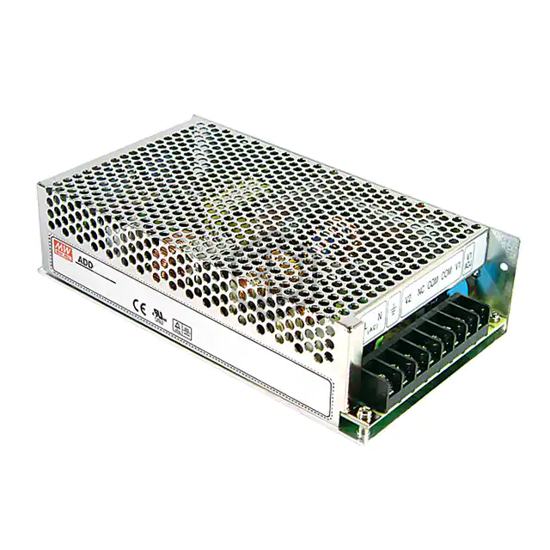

ADS-15548 is a AC DC Converters manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER 48V 5V 154W. Key specifications: mounting type Chassis Mount, operating temperature -10°C ~ 60°C (With Derating), voltage - input 88 ~ 264 VAC, 124 ~ 370 VDC, size / dimension 7.83" L x 4.33" W x 1.97" H (199.0mm x 110.0mm x 50.0mm).
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 2 |
| Voltage - Input | 88 ~ 264 VAC, 124 ~ 370 VDC |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | 5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 2.9 A |
| Current - Output 2 | 3 A |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 154W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 82% |
| Operating Temperature | -10°C ~ 60°C (With Derating) |
| Features | Adjustable Output, PFC, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.83" L x 4.33" W x 1.97" H (199.0mm x 110.0mm x 50.0mm) |
| Approval Agency | CB, CE, cURus, TUV |
| Standard Number | - |
Submit your RFQ for ADS-15548 and get a quote within 24 hours.
