3J LIMITED

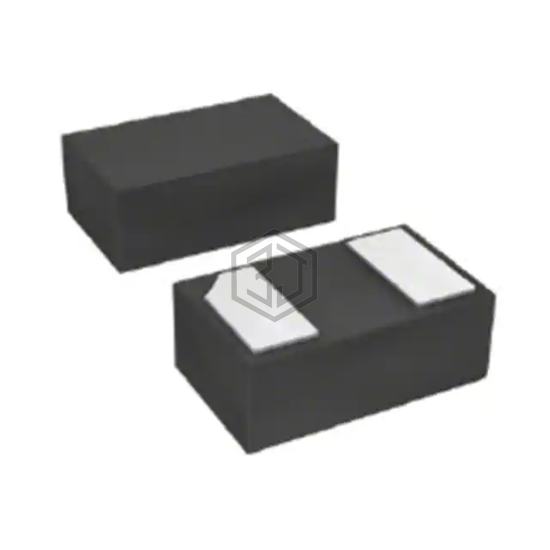

ESD0501L
TVS DIODE 5VWM 15VC DFN1006
ESD0501L is a TVS - Diodes manufactured by MDD. TVS DIODE 5VWM 15VC DFN1006. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case DFN1006.
In Stock: 30,000
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Zener |
| Unidirectional Channels | 1 |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | - |
| Current - Peak Pulse (10/1000µs) | 4A (8/20µs) |
| Power - Peak Pulse | 60W |
| Power Line Protection | Yes |
| Applications | General Purpose |
| Capacitance @ Frequency | 0.5pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DFN1006 |
| Supplier Device Package | DFN1006 |
Frequently Asked Questions
ESD0501L is a TVS - Diodes manufactured by MDD. TVS DIODE 5VWM 15VC DFN1006
The mounting type of ESD0501L is Surface Mount.
The operating temperature range of ESD0501L is -55°C ~ 125°C (TJ).
The package type of ESD0501L is DFN1006.
