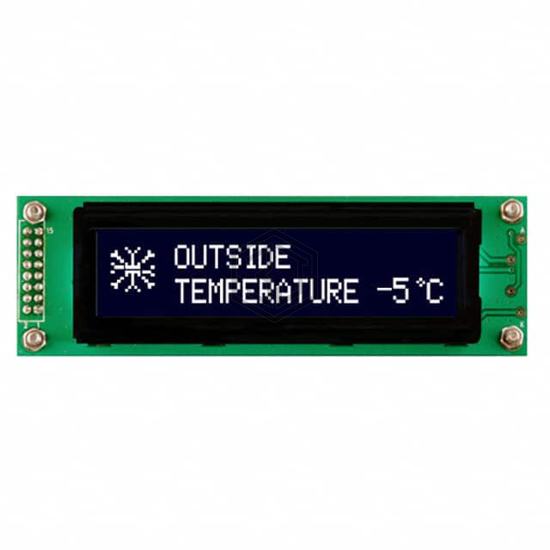

LCD MOD 40DIG 20X2 TRANSMISV WHT
LK202-25-FW-E is a Display Modules - LCD, OLED Character and Numeric manufactured by Matrix Orbital. LCD MOD 40DIG 20X2 TRANSMISV WHT. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 4.75V ~ 5.25V, interface I²C, RS-232, TTL, display type FFSTN - Double Film Super-Twisted Nematic.
In Stock: 6,710
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Characters | 40 |
| Display Format | 20 x 2 |
| Character Format | 5 x 8 Dots |
| Display Type | FFSTN - Double Film Super-Twisted Nematic |
| Display Mode | Transmissive |
| Character Size | 5.55mm H x 3.20mm W |
| Outline L x W x H | 116.00mm x 37.00mm x 28.69mm |
| Viewing Area | 83.00mm L x 18.60mm W |
| Backlight | LED - White |
| Voltage - Supply | 4.75V ~ 5.25V |
| Dot Size | 0.60mm W x 0.65mm H |
| Interface | I²C, RS-232, TTL |
| Controller Type | - |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | White |
| Background Color | Black |
Submit your RFQ for LK202-25-FW-E and get a quote within 24 hours.
