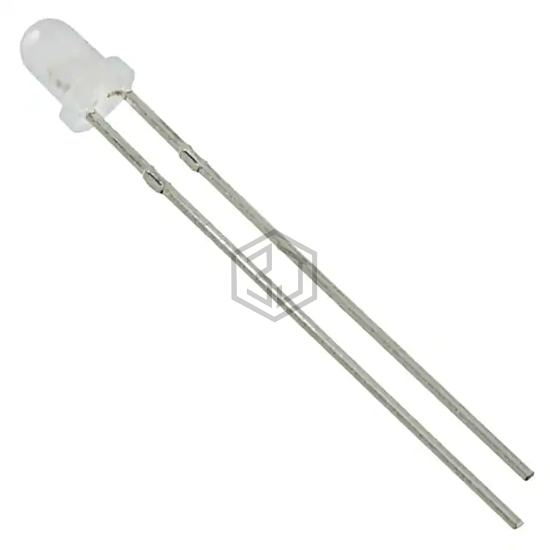

LED GRN/RED DIFF 3.0MM ROUND T/H
MT2030-HRG-A is a LED Indication - Discrete manufactured by Marktech Optoelectronics. LED GRN/RED DIFF 3.0MM ROUND T/H. Key specifications: mounting type Through Hole, voltage - forward (vf) (typ) 2.1V Green, 2.1V Red, package / case Radial, color Green, Red.
In Stock: 12,971
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Bidirectional |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 7mcd Green, 9mcd Red |
| Lens Style | Round with Domed Top |
| Lens Size | 3.00mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2.1V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 118° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | 572nm Green, 626nm Red |
| Wavelength - Peak | 567nm Green, 635nm Red |
| Features | - |
| Package / Case | Radial |
| Supplier Device Package | 3.0mm Round |
| Size / Dimension | - |
| Height (Max) | 5.10mm |
Submit your RFQ for MT2030-HRG-A and get a quote within 24 hours.
