Mallory Sonalert Products Inc.
BUZZER PIEZO 24V 30.74MM PNL MNT

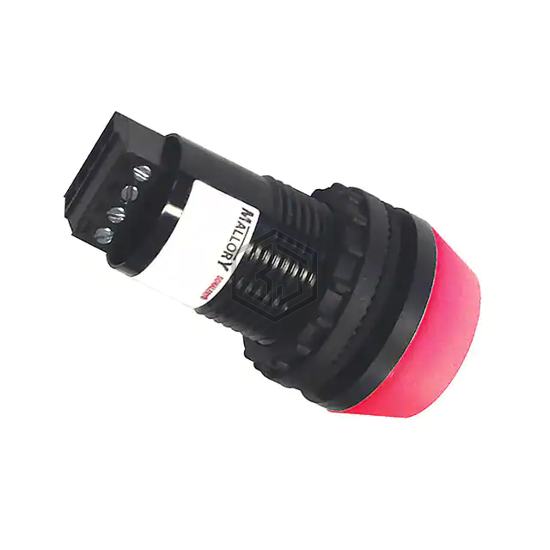

ZT028LDIC3R is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 24V 30.74MM PNL MNT. Key specifications: mounting type Panel Mount, operating temperature -30°C ~ 65°C, voltage - rated 24 V, current - supply 50mA.
In Stock: 108
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 24 V |
| Voltage Range | 20 ~ 28V |
| Frequency | 3.9kHz |
| Technology | Piezo |
| Operating Mode | Pulse, Slow, Visual Indicator |
| Duration | 1 PPS |
| Sound Pressure Level (SPL) | 85dB @ 20V, 61cm |
| Current - Supply | 50mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 65°C |
| Approval Agency | cUL, UL |
| Ratings | - |
| Ingress Protection | NEMA 3R, 4X, 12 |
| Mounting Type | Panel Mount |
| Termination | Terminal Block |
| Size / Dimension | 1.210" Dia (30.74mm) |
| Height - Seated (Max) | 2.234" (56.75mm) |
Submit your RFQ for ZT028LDIC3R and get a quote within 24 hours.
