Mallory Sonalert Products Inc.

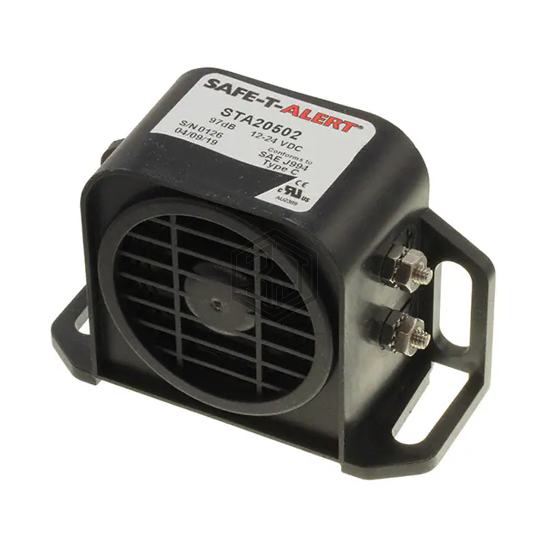

BUZZER PIEZO 102X41MM BRACKET
STA20502 is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 102X41MM BRACKET. Key specifications: mounting type Bracket Mount, operating temperature -40°C ~ 85°C, current - supply 600mA, size / dimension 4.016" L x 1.614" W (102.00mm x 41.00mm).
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | - |
| Voltage Range | 12 ~ 24V |
| Frequency | 1.25kHz |
| Technology | Piezo |
| Operating Mode | Pulse, Slow |
| Duration | - |
| Sound Pressure Level (SPL) | 97dB @ 12V, 122cm |
| Current - Supply | 600mA |
| Port Location | User Defined |
| Operating Temperature | -40°C ~ 85°C |
| Approval Agency | CE, cUL, UL |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Bracket Mount |
| Termination | Screw Terminals |
| Size / Dimension | 4.016" L x 1.614" W (102.00mm x 41.00mm) |
| Height - Seated (Max) | 2.717" (69.00mm) |
Submit your RFQ for STA20502 and get a quote within 24 hours.
