Mallory Sonalert Products Inc.

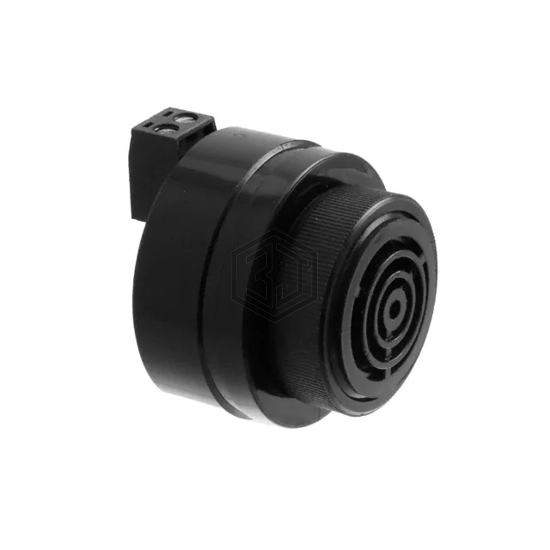

BUZZER PIEZO 42.85MM PNL MNT
SCE120XA3DP2B is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 42.85MM PNL MNT. Key specifications: mounting type Panel Mount, operating temperature -40°C ~ 85°C, current - supply 40mA, size / dimension 1.687" Dia (42.85mm).
In Stock: 6,719
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | AC |
| Voltage - Rated | - |
| Voltage Range | 48 ~ 120V |
| Frequency | 2.9kHz |
| Technology | Piezo |
| Operating Mode | Double Pulse, Fast |
| Duration | 2 PPS |
| Sound Pressure Level (SPL) | 95dB @ 48V, 61cm |
| Current - Supply | 40mA |
| Port Location | Top |
| Operating Temperature | -40°C ~ 85°C |
| Approval Agency | cUL, UL |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount |
| Termination | Terminal Block |
| Size / Dimension | 1.687" Dia (42.85mm) |
| Height - Seated (Max) | 1.511" (38.39mm) |
Submit your RFQ for SCE120XA3DP2B and get a quote within 24 hours.
