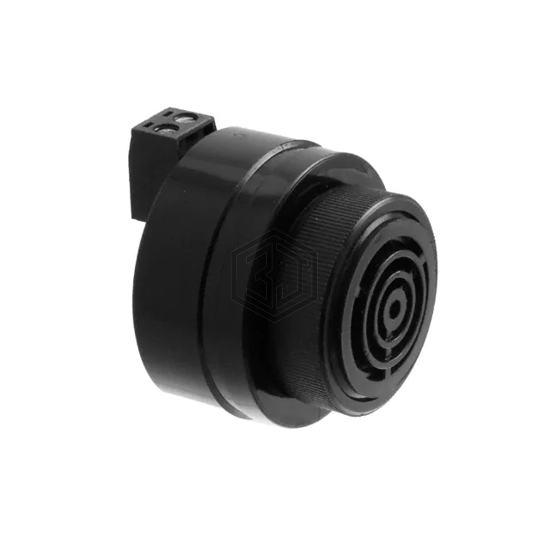

Mallory Sonalert Products Inc.
BUZZER PIEZO 42.85MM PNL MNT
SCE028MD3CTB is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 42.85MM PNL MNT. Key specifications: mounting type Panel Mount, operating temperature -40°C ~ 85°C, current - supply 40mA, size / dimension 1.687" Dia (42.85mm).
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | - |
| Voltage Range | 16 ~ 28V |
| Frequency | 2.9kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 75dB @ 16V, 61cm |
| Current - Supply | 40mA |
| Port Location | Top |
| Operating Temperature | -40°C ~ 85°C |
| Approval Agency | cUL, UL |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount |
| Termination | Terminal Block |
| Size / Dimension | 1.687" Dia (42.85mm) |
| Height - Seated (Max) | 1.511" (38.39mm) |
Submit your RFQ for SCE028MD3CTB and get a quote within 24 hours.
