Mallory Sonalert Products Inc.
BUZZER PIEZO 42.98MM PNL MNT

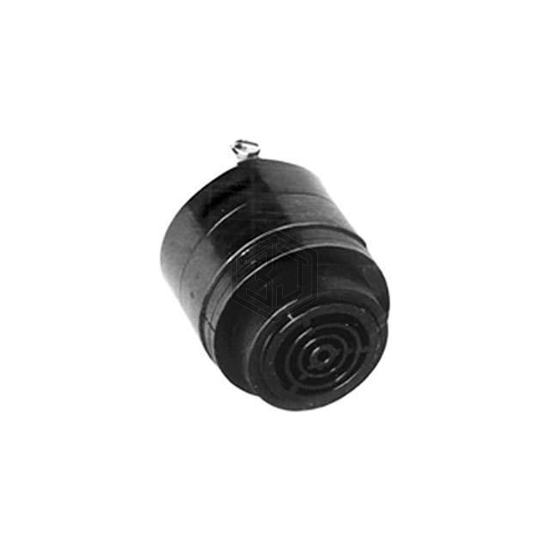

SC628MP is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 42.98MM PNL MNT. Key specifications: mounting type Panel Mount, operating temperature -40°C ~ 85°C, current - supply 4 ~ 16mA, size / dimension 1.692" Dia (42.98mm).
In Stock: 19
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | - |
| Voltage Range | 6 ~ 28V |
| Frequency | 2.9kHz |
| Technology | Piezo |
| Operating Mode | Pulse, Fast |
| Duration | 2 ~ 10 PPS |
| Sound Pressure Level (SPL) | 70dB @ 6V, 61cm |
| Current - Supply | 4 ~ 16mA |
| Port Location | Top |
| Operating Temperature | -40°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount |
| Termination | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) |
| Size / Dimension | 1.692" Dia (42.98mm) |
| Height - Seated (Max) | 1.946" (49.43mm) |
