Mallory Sonalert Products Inc.

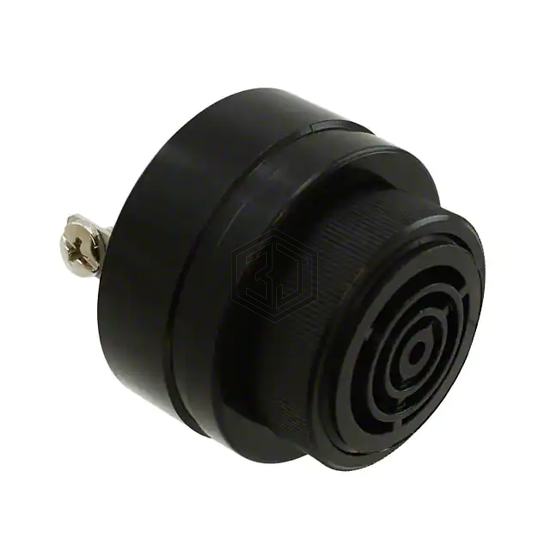

BUZZER PIEZO 42.98MM PNL MNT
SC628E is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 42.98MM PNL MNT. Key specifications: mounting type Panel Mount, operating temperature -30°C ~ 65°C, current - supply 3 ~ 11mA, size / dimension 1.692" Dia (42.98mm).
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | - |
| Voltage Range | 6 ~ 28V |
| Frequency | 1.9kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 55dB @ 6V, 61cm |
| Current - Supply | 3 ~ 11mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 65°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount |
| Termination | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) |
| Size / Dimension | 1.692" Dia (42.98mm) |
| Height - Seated (Max) | 1.330" (33.77mm) |
Submit your RFQ for SC628E and get a quote within 24 hours.
