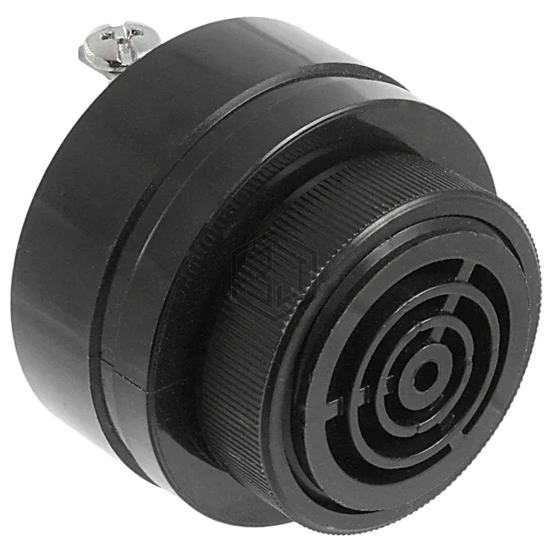

SC628DPR - Mallory Sonalert Products Inc. - Alarms, Buzzers, and Sirens

SC628DPR

Mallory Sonalert Products Inc.

BUZZER PIEZO 42.98MM PNL MNT

SC628DPR is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 42.98MM PNL MNT. Key specifications: mounting type Panel Mount, operating temperature -30°C ~ 65°C, current - supply 6 ~ 23mA, size / dimension 1.692" Dia (42.98mm).

In Stock: 29

Product Attributes

AttributeValue
Product StatusActive
Driver CircuitryIndicator, Internally Driven
Input TypeDC
Voltage - Rated-
Voltage Range6 ~ 28V
Frequency1.9kHz
TechnologyPiezo
Operating ModePulse, Fast
Duration2 ~ 10 PPS
Sound Pressure Level (SPL)60dB @ 6V, 61cm
Current - Supply6 ~ 23mA
Port LocationTop
Operating Temperature-30°C ~ 65°C
Approval AgencycUL, UL
Ratings-
Ingress Protection-
Mounting TypePanel Mount
TerminationScrew Terminal, Quick Connect Tab - 0.250" (6.35mm)
Size / Dimension1.692" Dia (42.98mm)
Height - Seated (Max)1.330" (33.77mm)

Frequently Asked Questions

SC628DPR is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 42.98MM PNL MNT

The mounting type of SC628DPR is Panel Mount.

The operating temperature range of SC628DPR is -30°C ~ 65°C.

The current rating of SC628DPR is 6 ~ 23mA.
