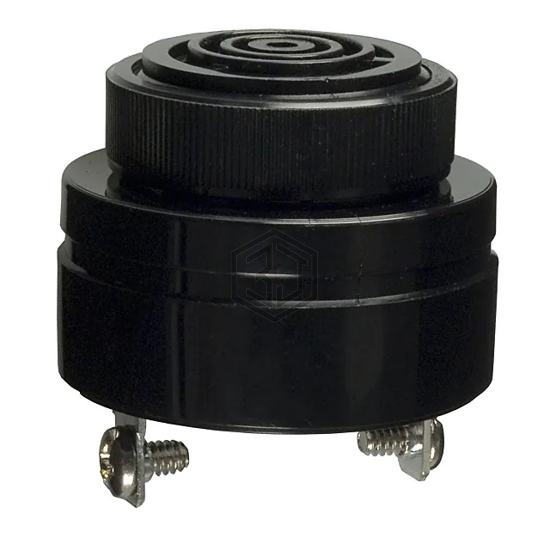

SC628D - Mallory Sonalert Products Inc. - Alarms, Buzzers, and Sirens

SC628D

Mallory Sonalert Products Inc.

BUZZER PIEZO 42.98MM PNL MNT

SC628D is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 42.98MM PNL MNT. Key specifications: mounting type Panel Mount, operating temperature -30°C ~ 65°C, current - supply 5 ~ 18mA, size / dimension 1.692" Dia (42.98mm).

In Stock: 141

Product Attributes

AttributeValue
Product StatusActive
Driver CircuitryIndicator, Internally Driven
Input TypeDC
Voltage - Rated-
Voltage Range6 ~ 28V
Frequency1.9kHz
TechnologyPiezo
Operating ModeSingle Tone
Duration-
Sound Pressure Level (SPL)60dB @ 6V, 61cm
Current - Supply5 ~ 18mA
Port LocationTop
Operating Temperature-30°C ~ 65°C
Approval AgencyUL
Ratings-
Ingress Protection-
Mounting TypePanel Mount
TerminationScrew Terminal, Quick Connect Tab - 0.250" (6.35mm)
Size / Dimension1.692" Dia (42.98mm)
Height - Seated (Max)1.330" (33.77mm)

Frequently Asked Questions

SC628D is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 42.98MM PNL MNT

The mounting type of SC628D is Panel Mount.

The operating temperature range of SC628D is -30°C ~ 65°C.

The current rating of SC628D is 5 ~ 18mA.
