Mallory Sonalert Products Inc.

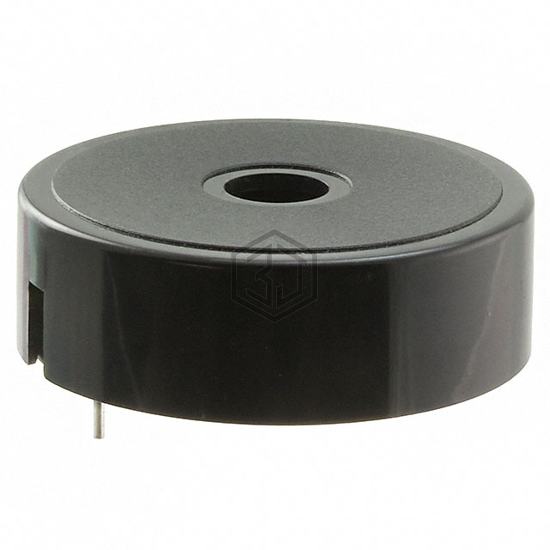

BUZZER PIEZO 44.5MM TH
SBT200PC is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 44.5MM TH. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 65°C, current - supply 1.5mA, size / dimension 1.752" Dia (44.50mm).
In Stock: 95
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | - |
| Voltage Range | 30V (Max) |
| Frequency | 200Hz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 5V, 10cm |
| Current - Supply | 1.5mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 65°C |
| Approval Agency | cUL, UL |
| Ratings | Medical |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 1.752" Dia (44.50mm) |
| Height - Seated (Max) | 0.559" (14.20mm) |
