Mallory Sonalert Products Inc.

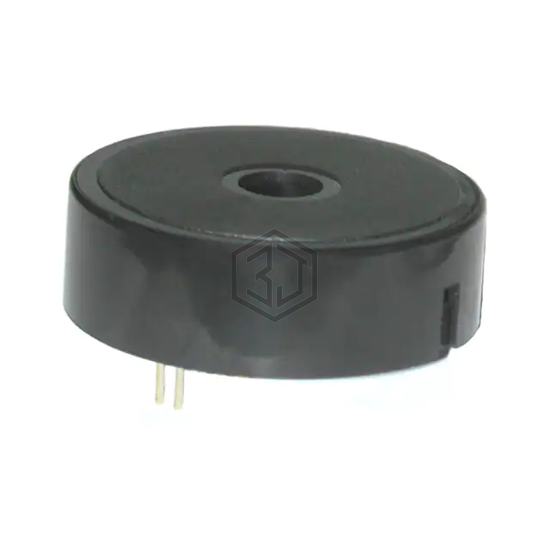

BUZZER PIEZO 44.45MM TH
SBT12PMPC is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 44.45MM TH. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 65°C, current - supply 25mA, size / dimension 1.750" Dia (44.45mm).
In Stock: 7,720
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | - |
| Voltage Range | 9 ~ 12V |
| Frequency | 2.075kHz |
| Technology | Piezo |
| Operating Mode | Pulse, Medium |
| Duration | Repeating every 7.5 Sec |
| Sound Pressure Level (SPL) | 85dB @ 9V, 10cm |
| Current - Supply | 25mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 65°C |
| Approval Agency | cUL, UL |
| Ratings | Medical |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 1.750" Dia (44.45mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
Submit your RFQ for SBT12PMPC and get a quote within 24 hours.
