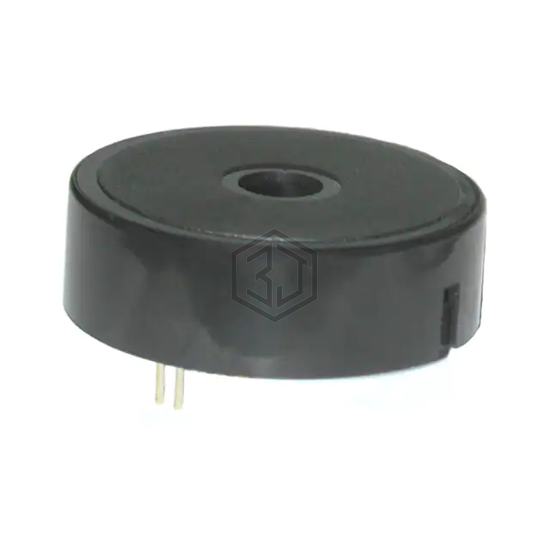

SBT12GLPC - Mallory Sonalert Products Inc. - Alarms, Buzzers, and Sirens

SBT12GLPC

Mallory Sonalert Products Inc.

BUZZER PIEZO 44.45MM TH

SBT12GLPC is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 44.45MM TH. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 65°C, current - supply 25mA, size / dimension 1.750" Dia (44.45mm).

In Stock: 20

Product Attributes

AttributeValue
Product StatusActive
Driver CircuitryIndicator, Internally Driven
Input TypeDC
Voltage - Rated-
Voltage Range9 ~ 12V
Frequency150Hz ~ 4kHz
TechnologyPiezo
Operating Mode-
DurationRepeating every 30 Sec
Sound Pressure Level (SPL)85dB @ 9V, 10cm
Current - Supply25mA
Port LocationTop
Operating Temperature-30°C ~ 65°C
Approval AgencycUL, UL
RatingsMedical
Ingress Protection-
Mounting TypeThrough Hole
TerminationPC Pins
Size / Dimension1.750" Dia (44.45mm)
Height - Seated (Max)0.551" (14.00mm)

Frequently Asked Questions

SBT12GLPC is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 44.45MM TH

The mounting type of SBT12GLPC is Through Hole.

The operating temperature range of SBT12GLPC is -30°C ~ 65°C.

The current rating of SBT12GLPC is 25mA.
