Mallory Sonalert Products Inc.

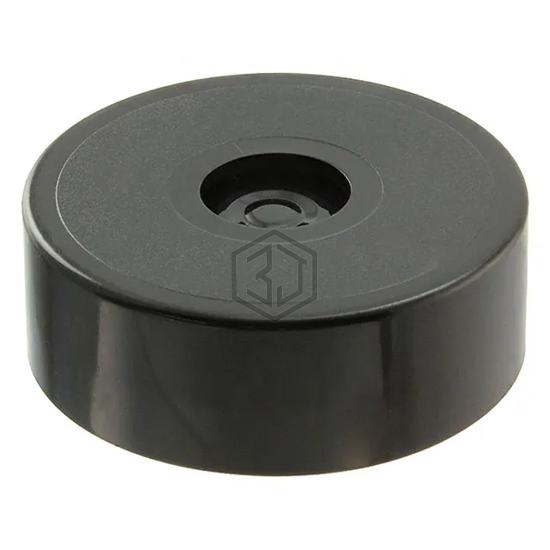

BUZZER MAGNETIC 2.8V 44.5MM TH
SBS300PC is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER MAGNETIC 2.8V 44.5MM TH. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 65°C, voltage - rated 2.8 V, size / dimension 1.752" Dia (44.50mm).
In Stock: 94
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 2.8 V |
| Voltage Range | - |
| Frequency | 325Hz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 95dB @ 9V, 10cm |
| Current - Supply | - |
| Port Location | Top |
| Operating Temperature | -30°C ~ 65°C |
| Approval Agency | cUL, UL |
| Ratings | Medical |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 1.752" Dia (44.50mm) |
| Height - Seated (Max) | 0.598" (15.20mm) |
