Mallory Sonalert Products Inc.

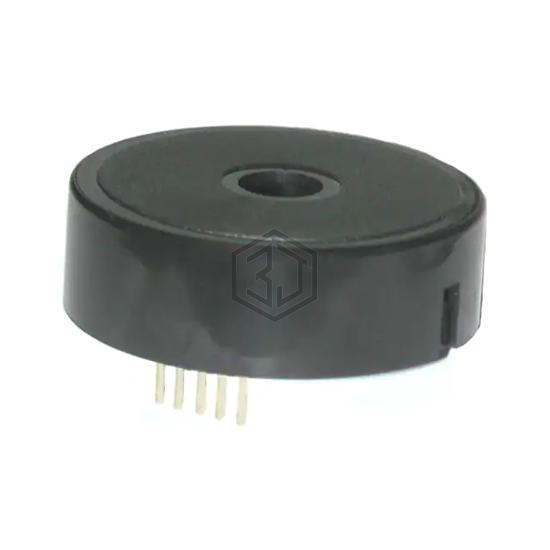

BUZZER MAGNETIC 44.45MM TH
SBS12PMHSPPC is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER MAGNETIC 44.45MM TH. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 65°C, current - supply 40 ~ 250mA, size / dimension 1.750" Dia (44.45mm).
In Stock: 8,550
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | - |
| Voltage Range | 9 ~ 12V |
| Frequency | 2.075kHz |
| Technology | Magnetic |
| Operating Mode | Pin Selectable |
| Duration | Variable |
| Sound Pressure Level (SPL) | 95dB @ 9V, 10cm |
| Current - Supply | 40 ~ 250mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 65°C |
| Approval Agency | cUL, UL |
| Ratings | Medical |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 1.750" Dia (44.45mm) |
| Height - Seated (Max) | 0.590" (14.99mm) |
