Mallory Sonalert Products Inc.

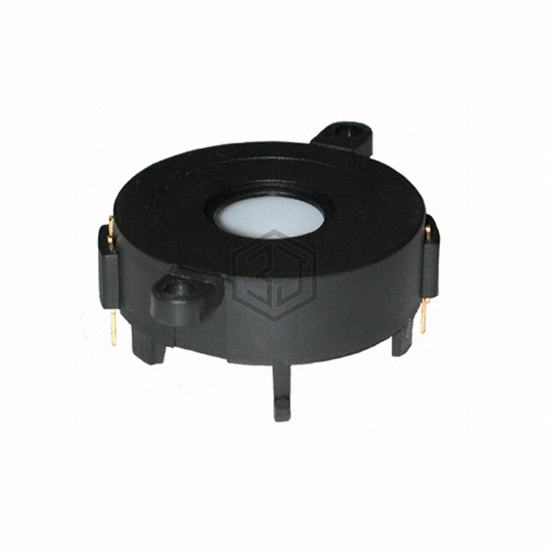

BUZZER PIEZO 12V 45MM TH
PT-4532PLQ is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 12V 45MM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 95°C, voltage - rated 12 V, current - supply 30mA.
In Stock: 30
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 12 V |
| Voltage Range | 3 ~ 50V |
| Frequency | 3.2kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 100dB @ 12V, 50cm |
| Current - Supply | 30mA |
| Port Location | Top |
| Operating Temperature | -40°C ~ 95°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 1.772" Dia (45.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
