Mallory Sonalert Products Inc.

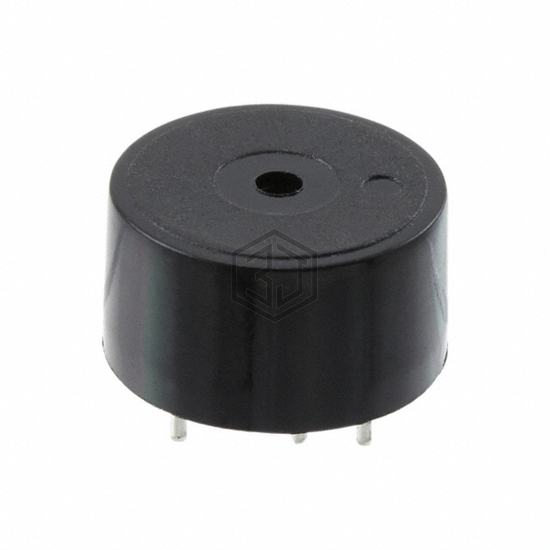

BUZZER PIEZO 9V 13.8MM TH
PT-1240FEQ is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 9V 13.8MM TH. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 60°C, voltage - rated 9 V, current - supply 7mA.
In Stock: 45
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 9 V |
| Voltage Range | 9 ~ 20V |
| Frequency | 4.1kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 9V, 10cm |
| Current - Supply | 7mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.543" Dia (13.80mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
Submit your RFQ for PT-1240FEQ and get a quote within 24 hours.
