Mallory Sonalert Products Inc.

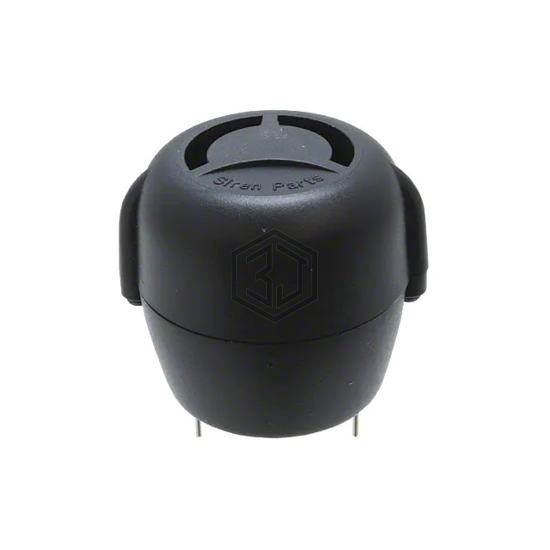

BUZZER PIEZO 12V 33MM TH
PS-953Q is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 12V 33MM TH. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 60°C, voltage - rated 12 V, current - supply 150mA.
In Stock: 11,161
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 5 ~ 15V |
| Frequency | 2.25kHz |
| Technology | Piezo |
| Operating Mode | Siren |
| Duration | - |
| Sound Pressure Level (SPL) | 105dB @ 12V, 100cm |
| Current - Supply | 150mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 1.299" Dia (33.00mm) |
| Height - Seated (Max) | 1.307" (33.20mm) |
Submit your RFQ for PS-953Q and get a quote within 24 hours.
