Mallory Sonalert Products Inc.

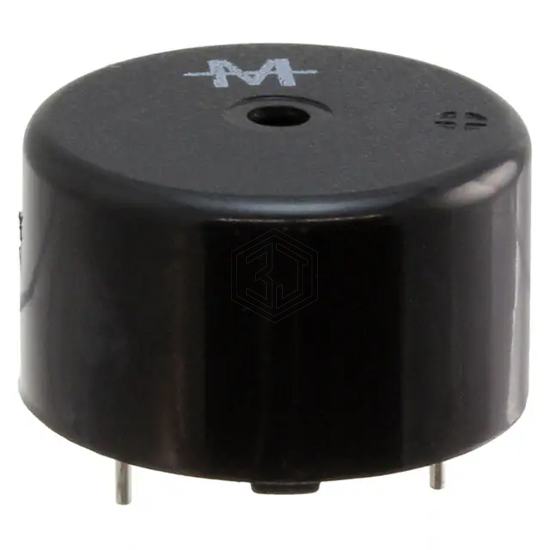

BUZZER PIEZO 12V 24MM TH
PL-21A31PQ is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 12V 24MM TH. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 70°C, voltage - rated 12 V, current - supply 18mA.
In Stock: 36
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 3 ~ 24V |
| Frequency | 3kHz |
| Technology | Piezo |
| Operating Mode | Pulse, Slow |
| Duration | 1.2 PPS |
| Sound Pressure Level (SPL) | 85dB @ 12V, 30cm |
| Current - Supply | 18mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.945" Dia (24.00mm) |
| Height - Seated (Max) | 0.559" (14.20mm) |
