Mallory Sonalert Products Inc.

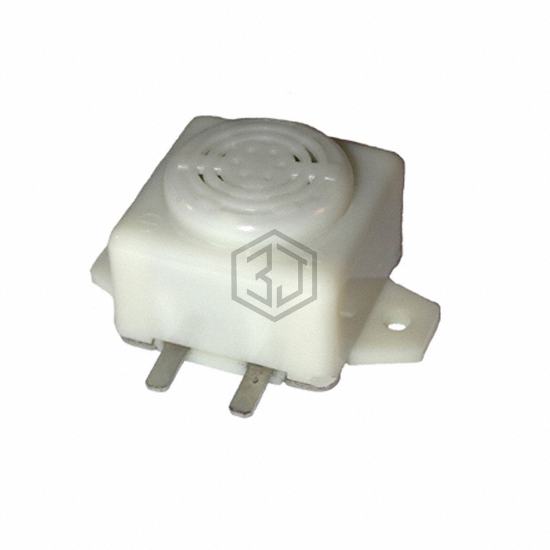

BUZZER MAGN 6V 26X26MM FLANGE
PK-26N04P-06AQ is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER MAGN 6V 26X26MM FLANGE. Key specifications: mounting type Panel Mount, Flange, operating temperature -30°C ~ 70°C, voltage - rated 6 V, current - supply 40mA.
In Stock: 21
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 6 V |
| Voltage Range | 4 ~ 8V |
| Frequency | 450Hz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 95dB @ 6V, 10cm |
| Current - Supply | 40mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Quick Connect Tab - 0.102" (2.60mm) |
| Size / Dimension | 1.024" L x 1.024" W (26.00mm x 26.00mm) |
| Height - Seated (Max) | 0.768" (19.50mm) |
Submit your RFQ for PK-26N04P-06AQ and get a quote within 24 hours.
