Mallory Sonalert Products Inc.

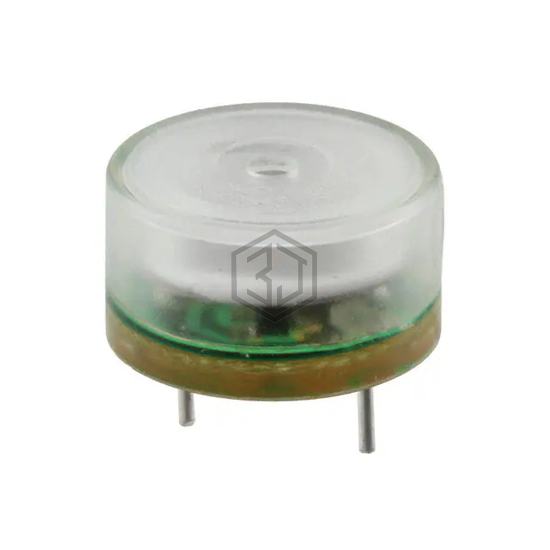

BUZZER PIEZO 12V 13.8MM TH
PK-12N40PEDBQ is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 12V 13.8MM TH. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 100°C, voltage - rated 12 V, current - supply 12mA.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 3 ~ 15V |
| Frequency | 4.1kHz |
| Technology | Piezo |
| Operating Mode | Single Tone, Visual Indicator |
| Duration | - |
| Sound Pressure Level (SPL) | 83dB @ 12V, 10cm |
| Current - Supply | 12mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 100°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.543" Dia (13.80mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
Submit your RFQ for PK-12N40PEDBQ and get a quote within 24 hours.
