Mallory Sonalert Products Inc.

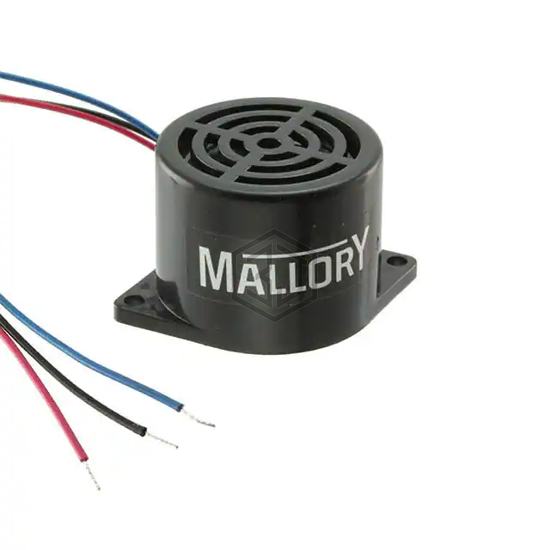

BUZZER MAGNETIC 31.7MM FLANGE
PB-32N10W-12K is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER MAGNETIC 31.7MM FLANGE. Key specifications: mounting type Panel Mount, Flange, operating temperature -20°C ~ 55°C, current - supply 90 ~ 155mA, size / dimension 1.248" Dia (31.70mm).
In Stock: 90
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | - |
| Voltage Range | 6 ~ 18V |
| Frequency | 1.12kHz |
| Technology | Magnetic |
| Operating Mode | Ding Dong |
| Duration | - |
| Sound Pressure Level (SPL) | 75dB @ 6V, 30cm |
| Current - Supply | 90 ~ 155mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 55°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 1.248" Dia (31.70mm) |
| Height - Seated (Max) | 0.988" (25.10mm) |
