Mallory Sonalert Products Inc.

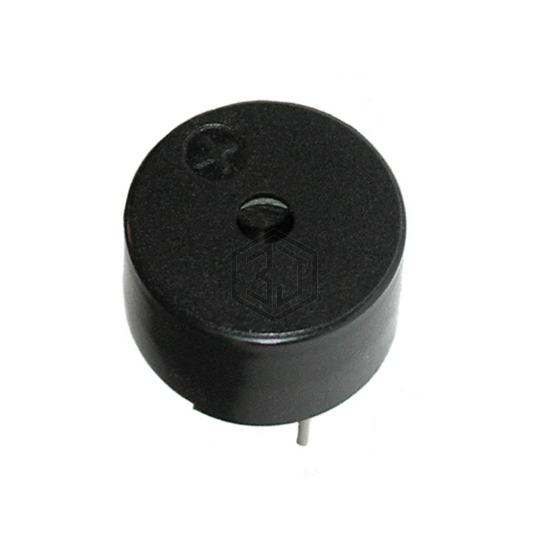

BUZZER MAGNETIC 1.5V 12MM TH
PB-1226PEAQ is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER MAGNETIC 1.5V 12MM TH. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 70°C, voltage - rated 1.5 V, current - supply 30mA.
In Stock: 13,674
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 1.5 V |
| Voltage Range | 1.1 ~ 3V |
| Frequency | 2.6kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 1.5V, 10cm |
| Current - Supply | 30mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.472" Dia (12.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
Submit your RFQ for PB-1226PEAQ and get a quote within 24 hours.
