Mallory Sonalert Products Inc.

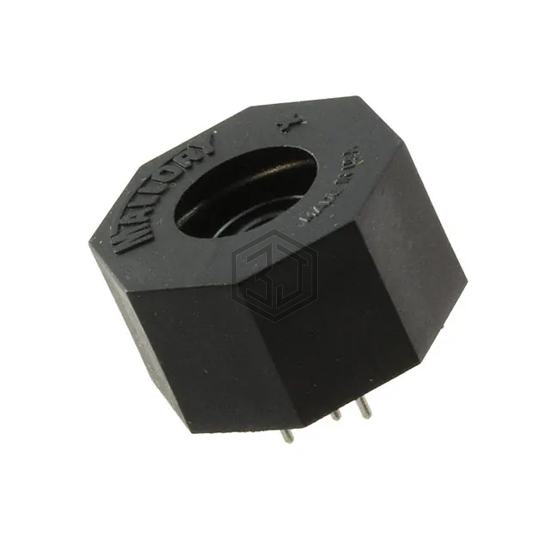

BUZZER MAGNETIC 5V 23X23MM TH
MSS5MMD is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER MAGNETIC 5V 23X23MM TH. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 55°C, voltage - rated 5 V, current - supply 45 ~ 150mA.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 5 V |
| Voltage Range | 4 ~ 6V |
| Frequency | 2.075kHz |
| Technology | Magnetic |
| Operating Mode | Pin Selectable |
| Duration | Variable |
| Sound Pressure Level (SPL) | 85dB @ 5V, 10cm |
| Current - Supply | 45 ~ 150mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 55°C |
| Approval Agency | cUL, UL |
| Ratings | Medical |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
| Height - Seated (Max) | - |
