Mallory Sonalert Products Inc.

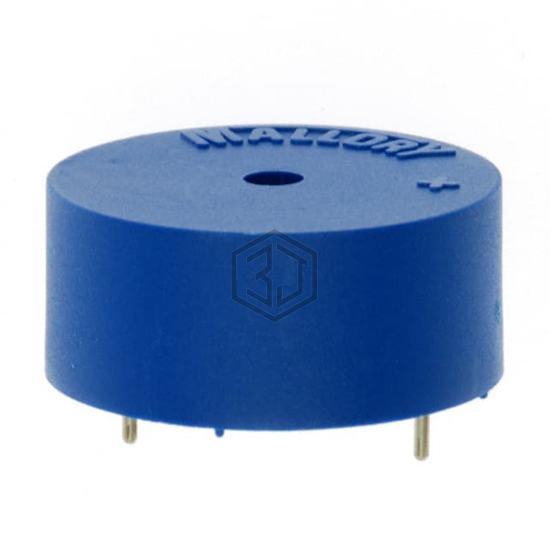

BUZZER PIEZO 23MM TH
MSR516NR is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 23MM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, current - supply 3 ~ 14mA, size / dimension 0.906" Dia (23.00mm).
In Stock: 2,022
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | - |
| Voltage Range | 5 ~ 16V |
| Frequency | 3.9kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 86dB @ 5V, 30cm |
| Current - Supply | 3 ~ 14mA |
| Port Location | Top |
| Operating Temperature | -40°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.906" Dia (23.00mm) |
| Height - Seated (Max) | 0.421" (10.70mm) |
Submit your RFQ for MSR516NR and get a quote within 24 hours.
