Mallory Sonalert Products Inc.
BUZZER PIEZO 23X23MM TH

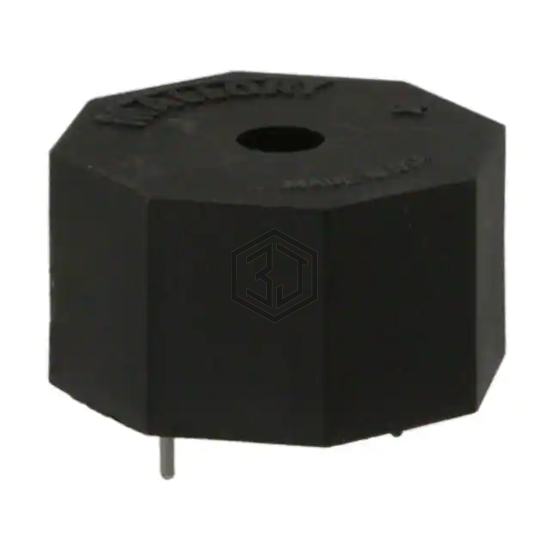

MSO206NR is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 23X23MM TH. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 65°C, current - supply 30mA, size / dimension 0.906" L x 0.906" W (23.00mm x 23.00mm).
In Stock: 2,842
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | - |
| Voltage Range | 2 ~ 6V |
| Frequency | 3.5kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 90dB @ 2V, 30cm |
| Current - Supply | 30mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 65°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
| Height - Seated (Max) | 0.535" (13.60mm) |
Submit your RFQ for MSO206NR and get a quote within 24 hours.
