Mallory Sonalert Products Inc.

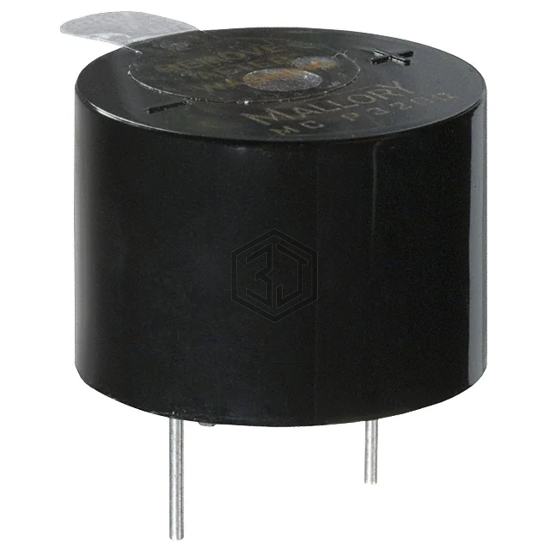

BUZZER PIEZO 12V 24MM TH
MCP320Q is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 12V 24MM TH. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 90°C, voltage - rated 12 V, current - supply 3 ~ 25mA.
In Stock: 8,296
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 3 ~ 20V |
| Frequency | 3.15kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 55dB @ 3V, 61cm |
| Current - Supply | 3 ~ 25mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 90°C |
| Approval Agency | - |
| Ratings | Washable |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.945" Dia (24.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
Submit your RFQ for MCP320Q and get a quote within 24 hours.
