Mallory Sonalert Products Inc.

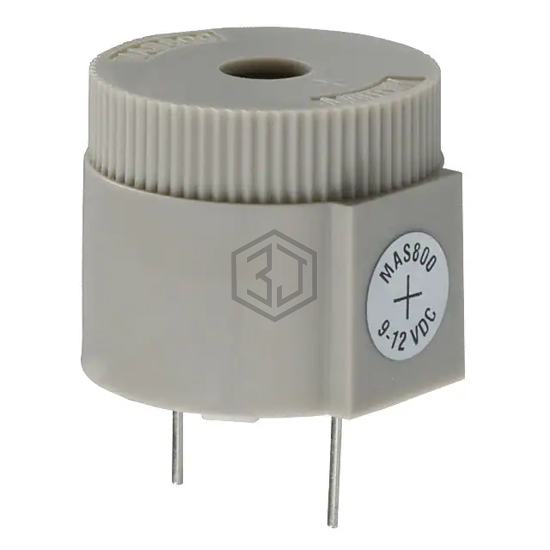

BUZZER PIEZO 12V 26MM TH
MAS800Q is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 12V 26MM TH. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 90°C, voltage - rated 12 V, current - supply 50mA.
In Stock: 6,761
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 9 ~ 12V |
| Frequency | 2.7kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 103dB @ 12V, 10cm |
| Current - Supply | 50mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 90°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 1.024" Dia (26.00mm) |
| Height - Seated (Max) | 0.862" (21.90mm) |
