Mallory Sonalert Products Inc.

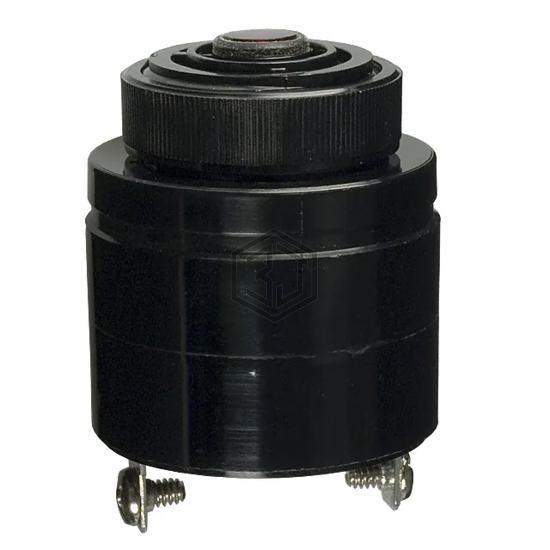

BUZZER PIEZO 42.85MM PNL MNT
LSC628AN is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 42.85MM PNL MNT. Key specifications: mounting type Panel Mount, operating temperature -30°C ~ 65°C, current - supply 65mA, size / dimension 1.687" Dia (42.85mm).
In Stock: 13
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | AC, DC |
| Voltage - Rated | - |
| Voltage Range | 9 ~ 28V |
| Frequency | 2.9kHz |
| Technology | Piezo |
| Operating Mode | Single Tone, Visual Indicator |
| Duration | - |
| Sound Pressure Level (SPL) | 80dB @ 9V, 10cm |
| Current - Supply | 65mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 65°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount |
| Termination | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) |
| Size / Dimension | 1.687" Dia (42.85mm) |
| Height - Seated (Max) | 1.431" (36.34mm) |
Submit your RFQ for LSC628AN and get a quote within 24 hours.
