Mallory Sonalert Products Inc.

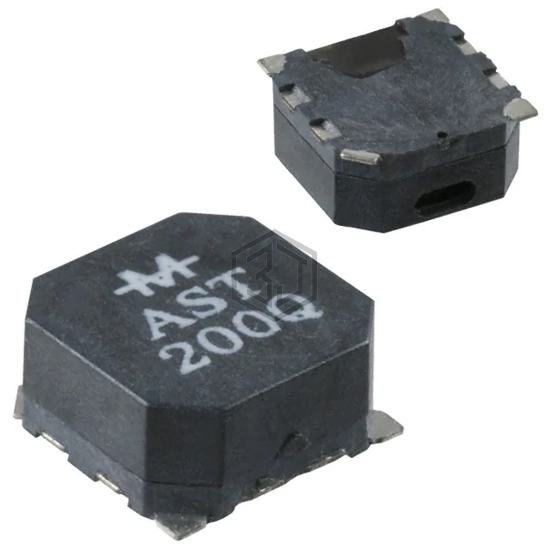

BUZZER MAGNETIC 3V 8.7X8.7MM SMD
AST200Q is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER MAGNETIC 3V 8.7X8.7MM SMD. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 70°C, voltage - rated 3 V, current - supply 80mA.
In Stock: 7,282
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 3 V |
| Voltage Range | 2 ~ 4V |
| Frequency | 2.73kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 3V, 10cm |
| Current - Supply | 80mA |
| Port Location | Side |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.343" L x 0.343" W (8.70mm x 8.70mm) |
| Height - Seated (Max) | 0.165" (4.20mm) |
Submit your RFQ for AST200Q and get a quote within 24 hours.
