Mallory Sonalert Products Inc.

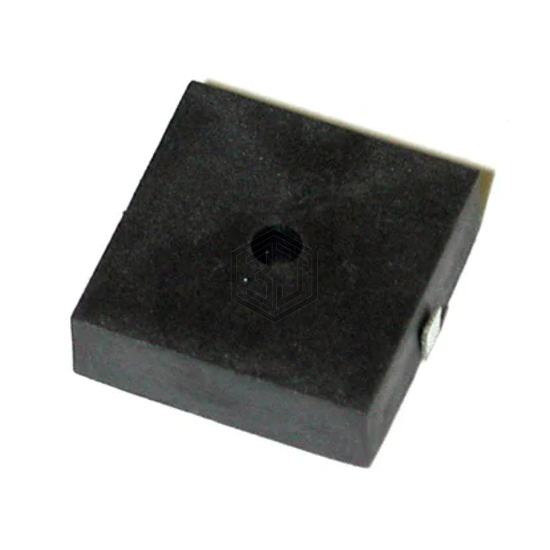

BUZZER PIEZO 5V 17X17MM SMD
AST1750MAQ is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 5V 17X17MM SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 70°C, voltage - rated 5 V, current - supply 2.5mA.
In Stock: 6,735
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 5 V |
| Voltage Range | 1 ~ 20V |
| Frequency | 4kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 80dB @ 5V, 10cm |
| Current - Supply | 2.5mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.669" L x 0.669" W (17.00mm x 17.00mm) |
| Height - Seated (Max) | 0.209" (5.30mm) |
Submit your RFQ for AST1750MAQ and get a quote within 24 hours.
