Mallory Sonalert Products Inc.

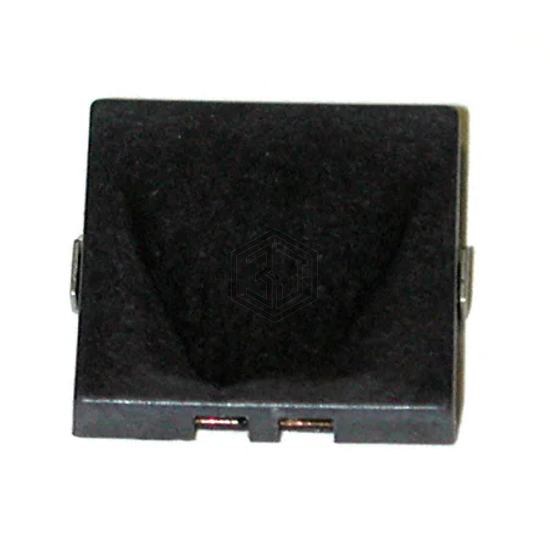

BUZZER PIEZO 3V 16X16MM SMD
AST1628MATRQ is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 3V 16X16MM SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 70°C, voltage - rated 3 V, current - supply 5mA.
In Stock: 1,747
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 3 V |
| Voltage Range | 1 ~ 25V |
| Frequency | 4kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 75dB @ 3V, 10cm |
| Current - Supply | 5mA |
| Port Location | Side |
| Operating Temperature | -30°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.630" L x 0.630" W (16.00mm x 16.00mm) |
| Height - Seated (Max) | 0.126" (3.20mm) |
Submit your RFQ for AST1628MATRQ and get a quote within 24 hours.
