Mallory Sonalert Products Inc.

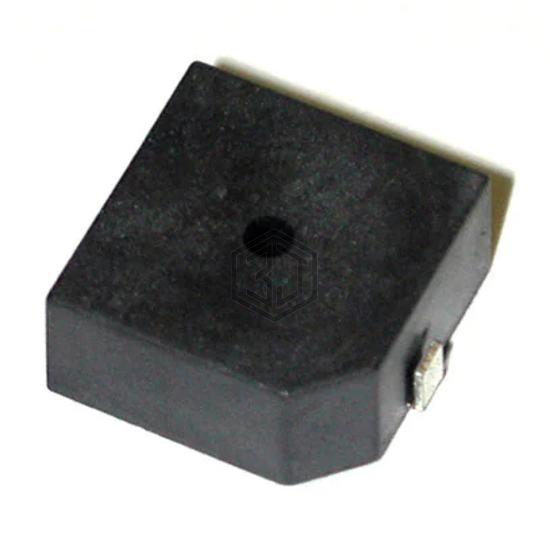

BUZZER PIEZO 7V 14.8X14.8MM SMD
AST1575BMATRQ is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 7V 14.8X14.8MM SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C, voltage - rated 7 V, current - supply 5mA.
In Stock: 29,116
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 7 V |
| Voltage Range | 1 ~ 30V |
| Frequency | 3.65kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 7V, 10cm |
| Current - Supply | 5mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.583" L x 0.583" W (14.80mm x 14.80mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
