Mallory Sonalert Products Inc.

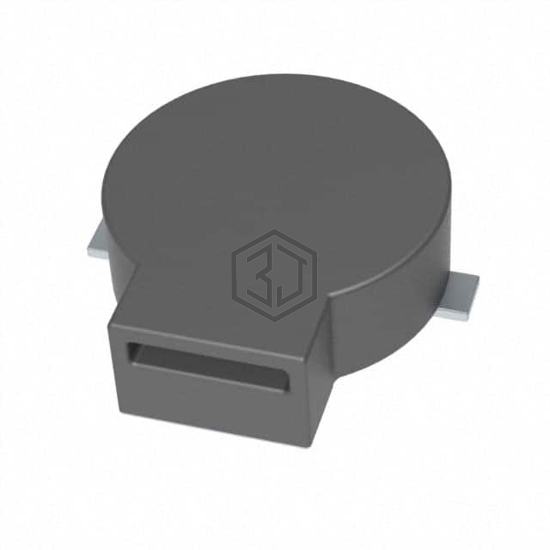

BUZZER MAGNETIC 3.6V 9MM SMD
AST0927MW-3.6TRQ is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER MAGNETIC 3.6V 9MM SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 70°C, voltage - rated 3.6 V, current - supply 90mA.
In Stock: 2,608
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 3.6 V |
| Voltage Range | 2 ~ 5V |
| Frequency | 2.73kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 3.6V, 10cm |
| Current - Supply | 90mA |
| Port Location | Side |
| Operating Temperature | -30°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.354" Dia (9.00mm) |
| Height - Seated (Max) | 0.126" (3.20mm) |
