Mallory Sonalert Products Inc.

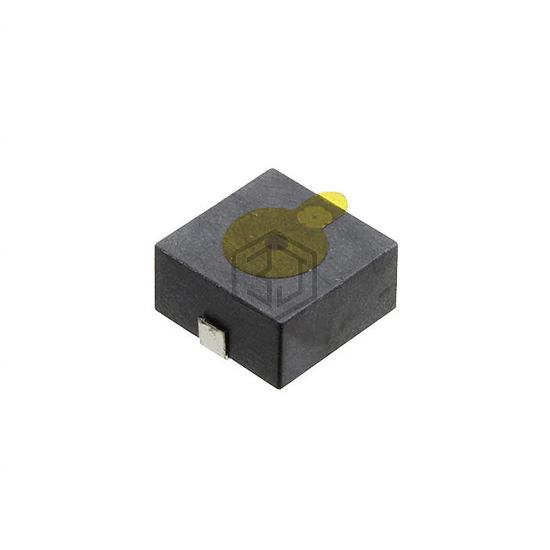

BUZZER PIEZO 12V 14X14MM SMD
ASI12N35MTRQ is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 12V 14X14MM SMD. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 100°C, voltage - rated 12 V, current - supply 10mA.
In Stock: 16,350
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 3 ~ 15V |
| Frequency | 3.5kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 83dB @ 12V, 10cm |
| Current - Supply | 10mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 100°C |
| Approval Agency | - |
| Ratings | Washable |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.551" L x 0.551" W (14.00mm x 14.00mm) |
| Height - Seated (Max) | 0.295" (7.50mm) |
Submit your RFQ for ASI12N35MTRQ and get a quote within 24 hours.
