Mallory Sonalert Products Inc.

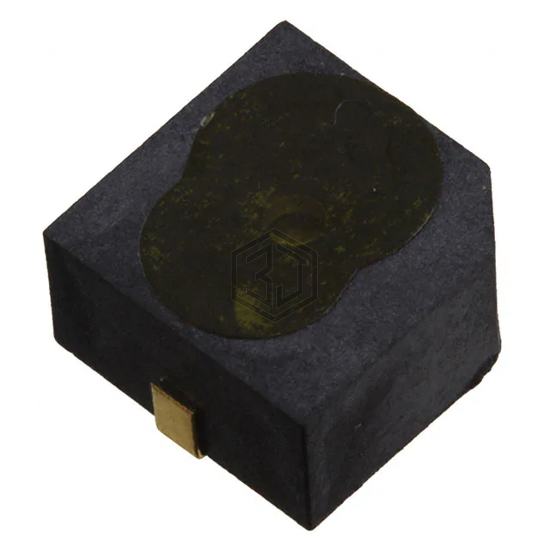

BUZZER MAGNETIC 5V 9.5X9.5MM SMD
ASI09N27M-05Q is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER MAGNETIC 5V 9.5X9.5MM SMD. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 70°C, voltage - rated 5 V, current - supply 30mA.
In Stock: 10,438
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 5 V |
| Voltage Range | 3 ~ 7V |
| Frequency | 2.7kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 80dB @ 3V, 10cm |
| Current - Supply | 30mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.374" L x 0.374" W (9.50mm x 9.50mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for ASI09N27M-05Q and get a quote within 24 hours.
