.079 Header

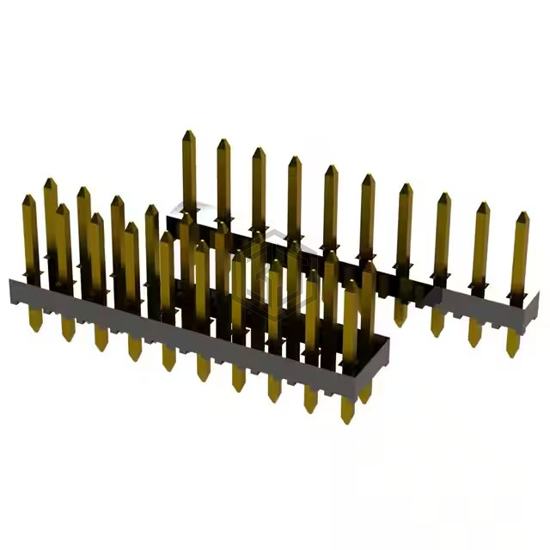

TSHC-204-D-01-089-F-LF is a Rectangular Connectors - Headers, Male Pins manufactured by Major League Electronics. .079 Header. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, contact material Phosphor Bronze, current rating (amps) 2A.
In Stock: 448
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.089" (2.26mm) |
| Contact Length - Post | 0.107" (2.72mm) |
| Overall Contact Length | 0.255" (6.48mm) |
| Insulation Height | 0.059" (1.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | 2A |
| Voltage Rating | - |
Submit your RFQ for TSHC-204-D-01-089-F-LF and get a quote within 24 hours.
