Terminal Blocks

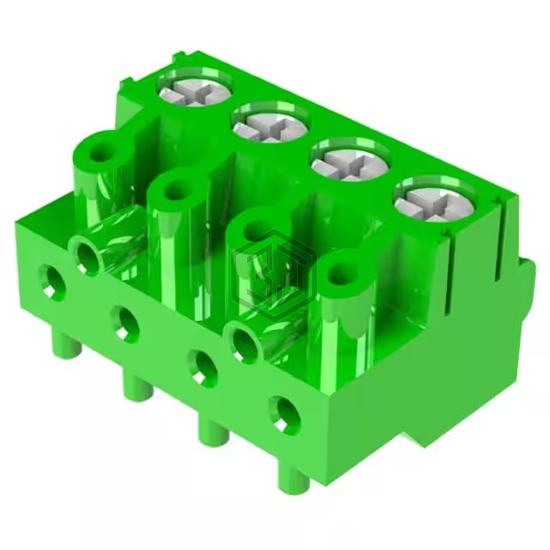

TBW-11-197-08-GR-LF is a Terminal Blocks - Headers, Plugs and Sockets manufactured by Major League Electronics. Terminal Blocks. Key specifications: mounting type Free Hanging (In-Line), operating temperature -33°C ~ 105°C, color Green, termination style Screw - Leaf Spring, Wire Guard.
In Stock: 74
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug for Unshrouded Header |
| Number of Positions | 8 |
| Positions Per Level | 8 |
| Number of Levels | 1 |
| Pitch | 0.197" (5.00mm) |
| Header Orientation | - |
| Plug Wire Entry | 90° |
| Termination Style | Screw - Leaf Spring, Wire Guard |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | 10 A |
| Voltage - UL | 250 V |
| Wire Gauge or Range - AWG | 14-24 AWG |
| Wire Gauge or Range - mm² | - |
| Color | Green |
| Operating Temperature | -33°C ~ 105°C |
| Contact Mating Finish | Tin |
| Features | - |
Submit your RFQ for TBW-11-197-08-GR-LF and get a quote within 24 hours.
