Terminal Blocks

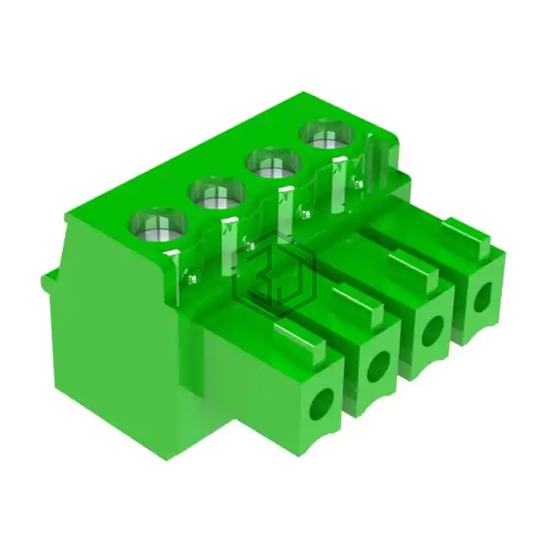

TBPS-00-150-16-GR-LF is a Terminal Blocks - Headers, Plugs and Sockets manufactured by Major League Electronics. Terminal Blocks. Key specifications: mounting type Free Hanging (In-Line), operating temperature -33°C ~ 105°C, color Green, termination style Screw - Rising Cage Clamp.
In Stock: 454
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 16 |
| Positions Per Level | 16 |
| Number of Levels | 1 |
| Pitch | 0.150" (3.81mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screw - Rising Cage Clamp |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | 8 A |
| Voltage - UL | 250 V |
| Wire Gauge or Range - AWG | 16-24 AWG |
| Wire Gauge or Range - mm² | - |
| Color | Green |
| Operating Temperature | -33°C ~ 105°C |
| Contact Mating Finish | Tin |
| Features | - |
Submit your RFQ for TBPS-00-150-16-GR-LF and get a quote within 24 hours.
